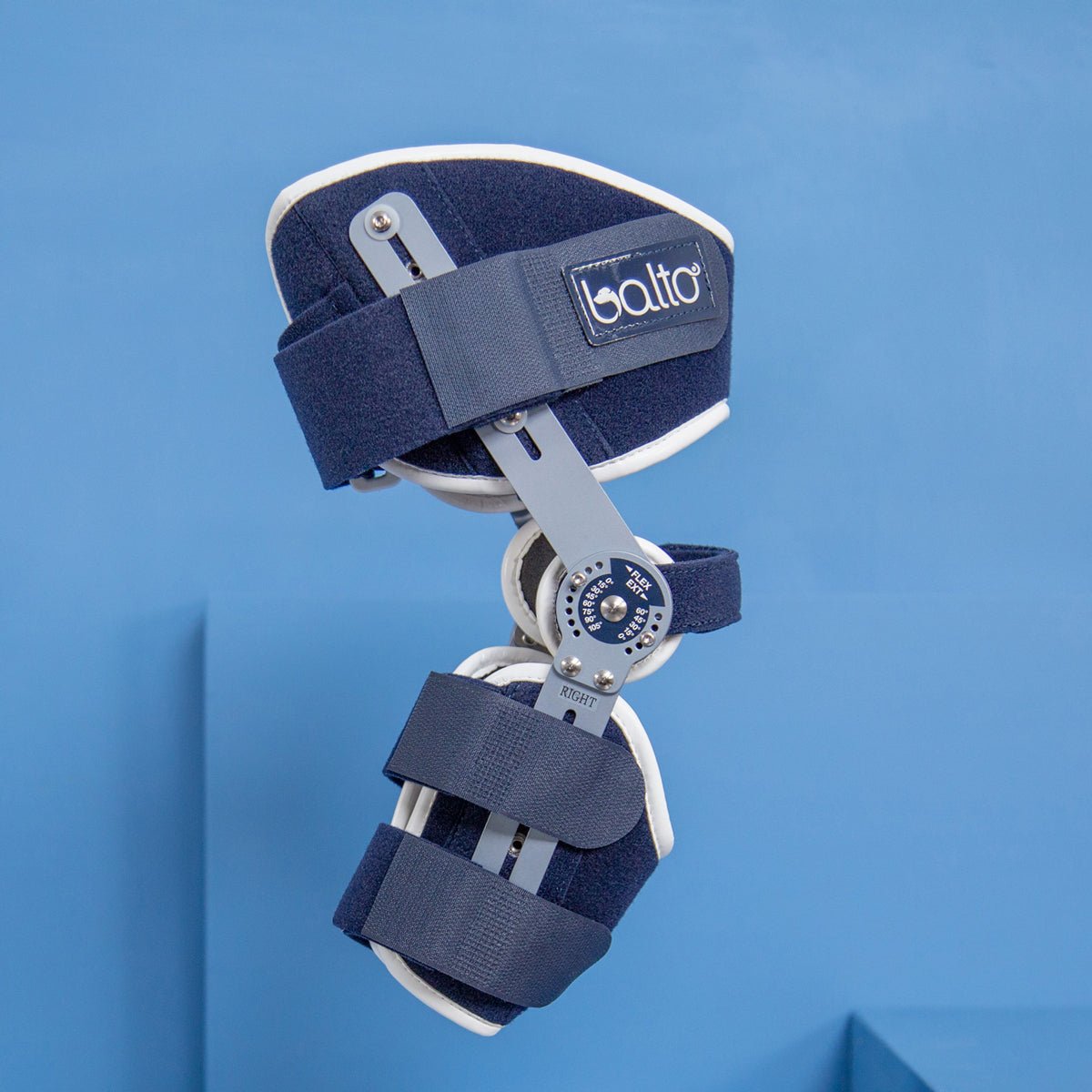

balto ligatek brace on blue background
Balto® Ligatek - Adjustable Hinged Knee Brace
measurement guideline for balto ligatek
Balto® Ligatek - Adjustable Hinged Knee Brace
Balto® Ligatek - Adjustable Hinged Knee Brace

Balto® Ligatek - Adjustable Hinged Knee Brace

Request Bulk Pricing Purchase Singles USA Purchase Singles UK
The Balto Ligatek is carefully designed to stabilize your dog's knee. With its adjustable hinges, the user can control the ROM (range of motion) and lock the joint into full immobilization or controlled degrees of motion. This allows a gradual return to movement after an injury or surgical procedure has occurred. Getting back your pet's ROM is a key factor to a full recovery. The brace is also width adjustable (thanks to our modifiable straps) as well as length adjustable. The upper and lower padding can be extended or shortened to ensure an excellent fit around the leg.

RECOMMENDED FOR:

  • Post-operative care in cases of cranial-caudal cruciate ligaments deficiency (TPLO, TTA surgical procedures), patellar surgical procedures (sulcoplasty, tibial tuberosity transposition, fracture), extracapsular technique, and patellar tendon synthesis.
  • Conservative treatment usage as an alternative to surgery for conditions such as cranial and caudal cruciate ligament injury and/or tear, traumatic or acquired collateral ligaments deficiency, joint capsule trauma, and patellar dislocation.

FEATURES:

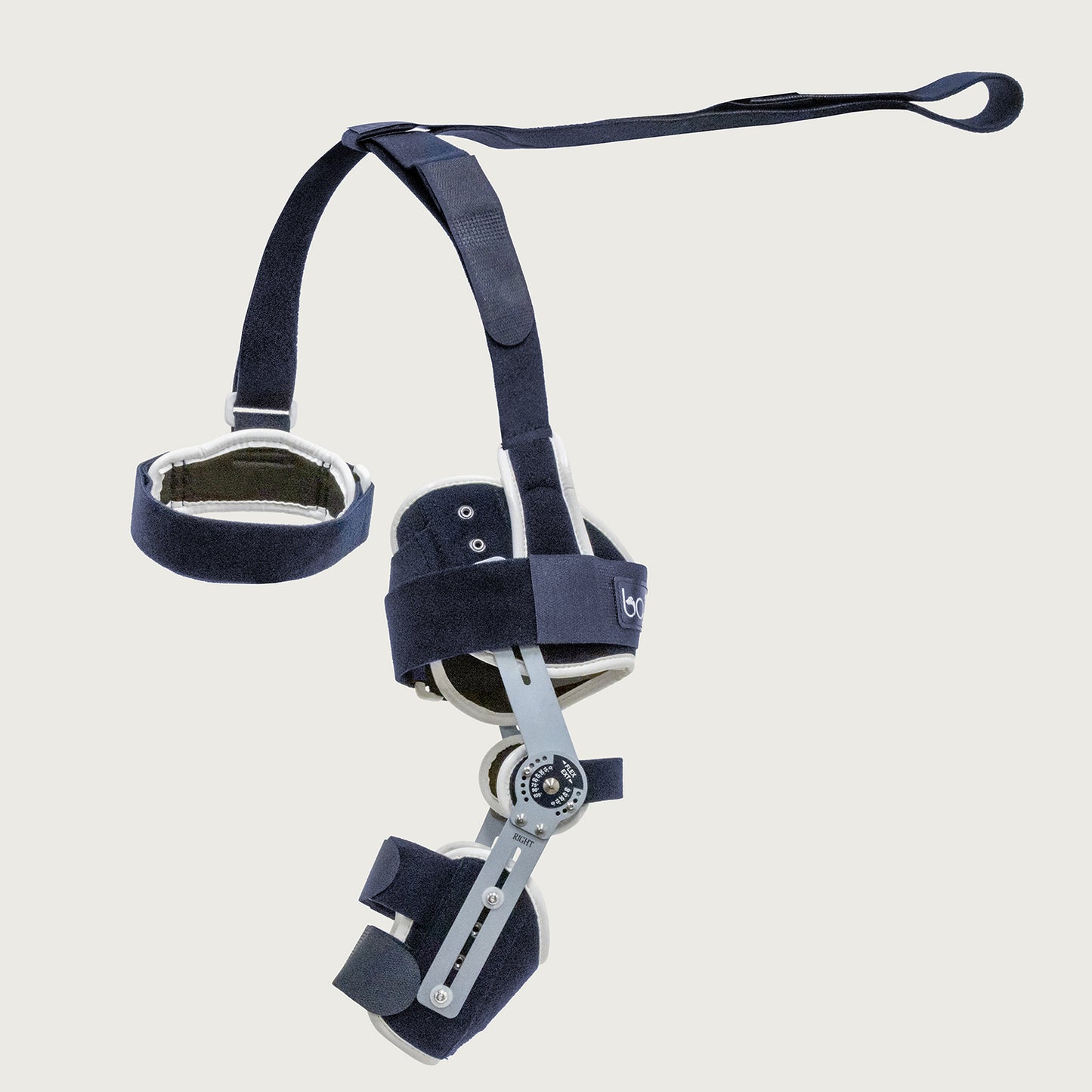

  • Comes with removable anchor kit strap to contralateral leg for added stability
  • Anchor kit can be used to connect to Balto Jump for bilateral leg support
  • Adjustable hinges and padding
  • Trimmable straps
  • Hand washable (always remove padded parts before washing)
  • Available in 4 sizes and as left or right knee
Download Sell Sheet

SPECIFICATIONS

ITEM # SIZE WEIGHT A B C
BTLIGATEKL-S (Left)
BTLIGATEKR-S (Right)		 S 20 - 35 lbs
9 - 16 kg
 8.3" - 10"
21 - 25 cm
 3" - 6"
8 - 15 cm
 4.3” - 5.5”
11 - 14 cm
BTLIGATEKL-M (Left)
BTLIGATEKR-M (Right) 		M 35 - 65 lbs
15 - 30 kg
 10" - 12"
25 - 31 cm
 4" - 6"
10 - 16 cm
 5.5” - 7"
14 - 18 cm
BTLIGATEKL-L (Left)
BTLIGATEKR-L (Right) 		L 60 - 110 lbs
28 - 50 kg
 11.5" - 13"
29 - 33 cm
 4.75" - 7"
12 - 18 cm
 6 “ - 8.75"
15 - 22 cm
BTLIGATEKL-XL (Left)
BTLIGATEKR-XL (Right) 		XL + 110 lbs
+ 50 kg
 + 14"
+ 35 cm
 + 14"
+ 35 cm
 6.3” - 9"
16 - 23 cm



Measurement A: Circumference of upper thigh
Measurement B: Circumference above the hock
Measurement C: Distance between A and B over the knee
